TSOP38236, TSOP38230 - IR Receiver

Name: TSOP38236
SKU: TSOP38236-940282

Vishay

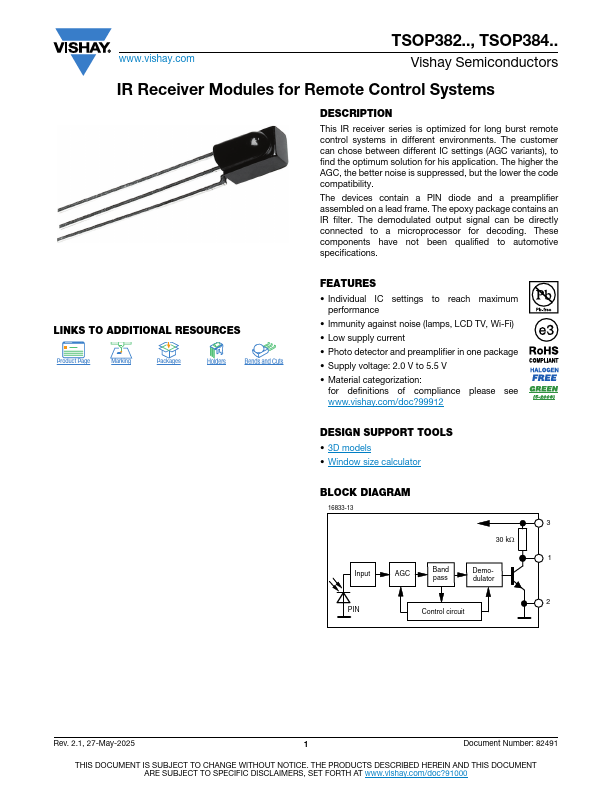

The TSOP38236 by Vishay is a IR Receiver. Below is the official datasheet preview.

Datasheet Details

Part number	TSOP38236, TSOP38230
Manufacturer	Vishay
File Size	222.95 KB
Description	IR Receiver
Datasheet	TSOP38230-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: TSOP38236, TSOP38230. Please refer to the document for exact specifications by model.

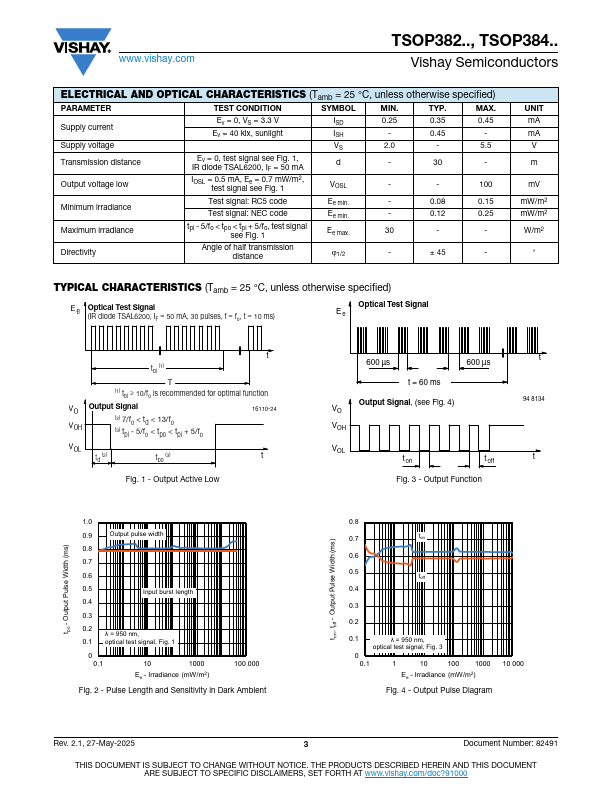

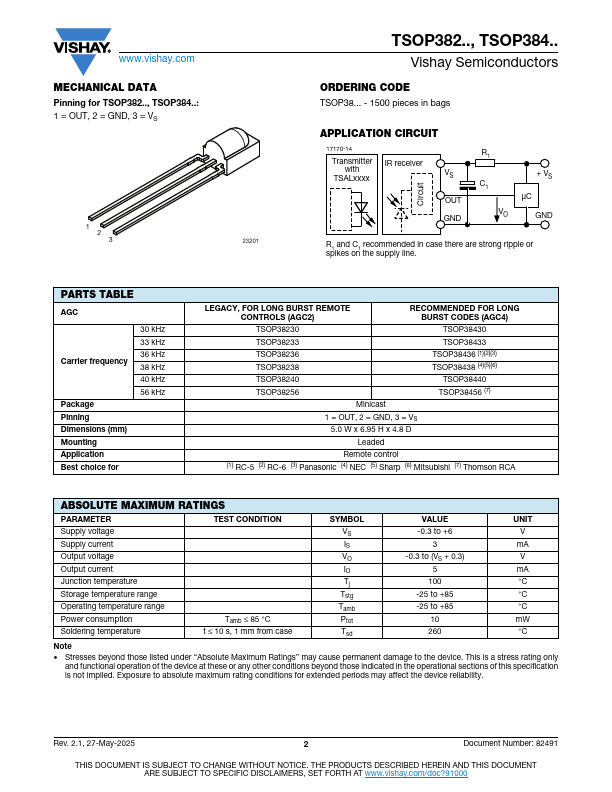

Additional preview pages of the TSOP38236 datasheet.

This IR receiver series is optimized for long burst remote control systems in different environments.

Individual IC settings to reach maximum performance.
Immunity against noise (lamps, LCD TV, Wi-Fi).
Low supply current.
Photo detector and preamplifier in one package.
Supply voltage: 2.0 V to 5.5 V.
Material categorization: for definitions of compliance please see www. vishay. com/doc?99912 DESIGN.
