V10P45S, SMD Photovoltaic Solar Cell Protection Schottky Rectifier

New Product V10P45S Vishay General Semiconductor SMD Photovoltaic Solar Cell Protection Schottky Rectifier Ultra Low VF = 0.34 V at IF = 5 A .

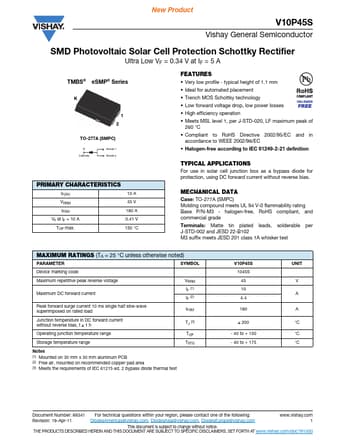

datasheet Preview Page 1 from Datasheet4u.com

V10P45S_Vishay.pdf

V10P45S Datasheet Preview — Preview of V10P45S PDF

Datasheet Details

Part number:

V10P45S

Manufacturer:

Vishay ↗

File Size:

144.61 KB

Description:

SMD Photovoltaic Solar Cell Protection Schottky Rectifier

Features

* TMBS® K eSMP® Series
* Very low profile - typical height of 1.1 mm
* Ideal for automated placement
* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximu

Applications

* For use in solar cell junction box as a bypass diode for protection, using DC forward current without reverse bias. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 10 A TOP max. 10 A 45 V 180 A 0.41 V 150 °C MECHANICAL DATA Case: TO-277A (SMPC) Molding compound meets UL 94 V-0 flammability rat
