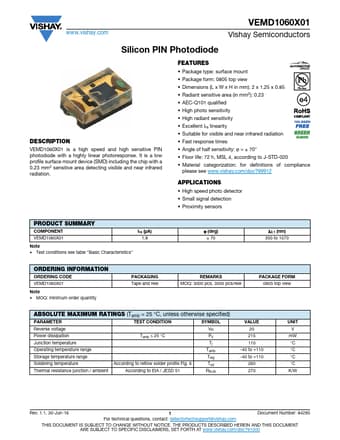

VEMD1060X01 Datasheet Preview — Preview of VEMD1060X01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VEMD1060X01
Manufacturer: Vishay ↗
File Size: 156.14 KB
Datasheet: VEMD1060X01-Vishay.pdf
Description: Silicon PIN Photodiode

VEMD1060X01 Product details

Description

VEMD1060X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse.

Features

Package type: surface mount.
Package form: 0805 top view.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85.
Radiant sensitive area (in mm2): 0.23.
AEC-Q101 qualified.
High photo sensitivity.
High radiant sensitivity.
Excellent Ira linearity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity: ϕ = ± 70°.
Floor life: 72 h, MSL 4, according to J-STD.
