VEMD1160X01 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

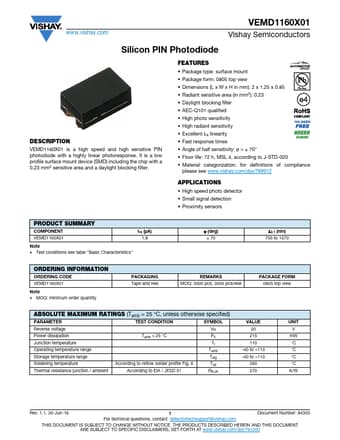

VEMD1160X01 Datasheet Preview — Preview of VEMD1160X01 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: VEMD1160X01
Manufacturer: Vishay ↗
File Size: 148.39 KB
Datasheet: VEMD1160X01-Vishay.pdf
Description: Silicon PIN Photodiode

VEMD1160X01 Product details

Description

VEMD1160X01 is a high speed and high sensitive PIN photodiode with a highly linear photoresponse.

Features

Package type: surface mount.
Package form: 0805 top view.
Dimensions (L x W x H in mm): 2 x 1.25 x 0.85.
Radiant sensitive area (in mm2): 0.23.
Daylight blocking filter.
AEC-Q101 qualified.
High photo sensitivity.
High radiant sensitivity.
Excellent Ira linearity.
Fast response times.
Angle of half sensitivity: ϕ = ± 70°.
Floor life: 72 h, MSL 4, according to J-STD-020.
Material.
