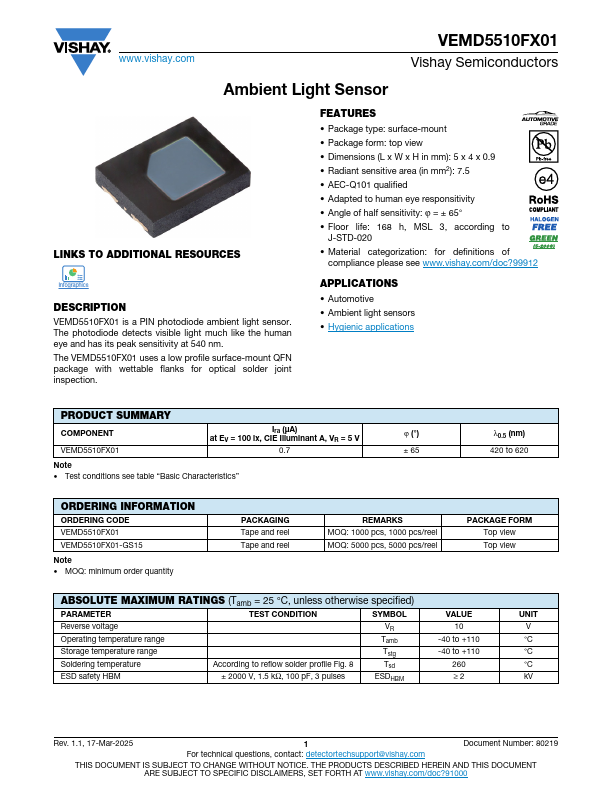

VEMD5510FX01 Ambient Light Sensor

www.vishay.com VEMD5510FX01 Vishay Semiconductors Ambient Light Sensor LINKS TO ADDITIONAL RESOURCES Infographics .
VEMD5510FX01 is a PIN photodiode ambient light sensor.

VEMD5510FX01-Vishay.pdf

VEMD5510FX01 Datasheet Preview — Preview of VEMD5510FX01 PDF

Datasheet Details

Part number:

VEMD5510FX01

Manufacturer:

Vishay ↗

File Size:

189.74 KB

Description:

Ambient Light Sensor

Features

* Package type: surface-mount
* Package form: top view

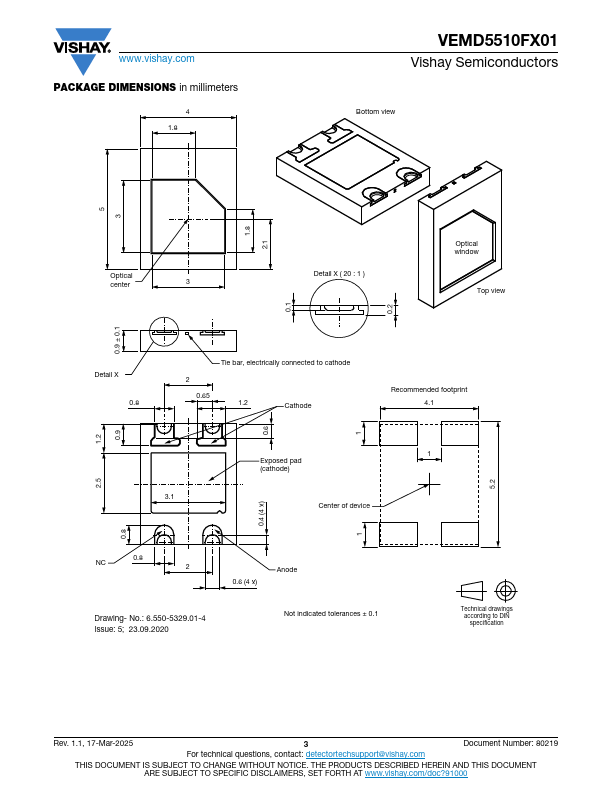

* Dimensions (L x W x H in mm): 5 x 4 x 0.9
* Radiant sensitive area (in mm2): 7.5
* AEC-Q101 qualified
* Adapted to human eye responsitivity
* Angle of half sensitivity: ϕ = ± 65°

Applications

* Automotive
* Ambient light sensors
* Hygienic applications PRODUCT SUMMARY COMPONENT Ira (μA) at EV = 100 lx, CIE Illuminant A, VR = 5 V ϕ (°) VEMD5510FX01 0.7 ± 65 Note
* Test conditions see table “Basic Characteristics” λ0.5 (nm) 420 to 620 ORDERING INFO

VEMD5510FX01 Distributors
