VEMD6010X01 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

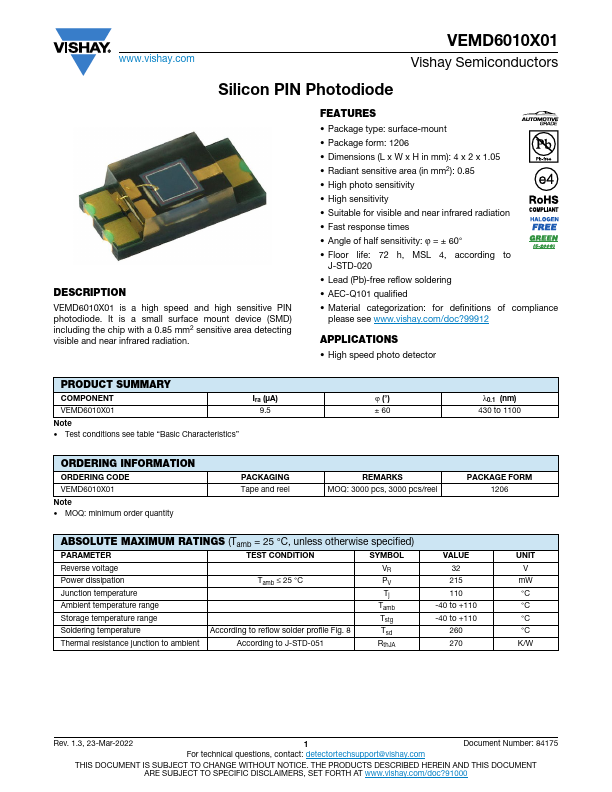

VEMD6010X01 Datasheet Preview — Preview of VEMD6010X01 PDF

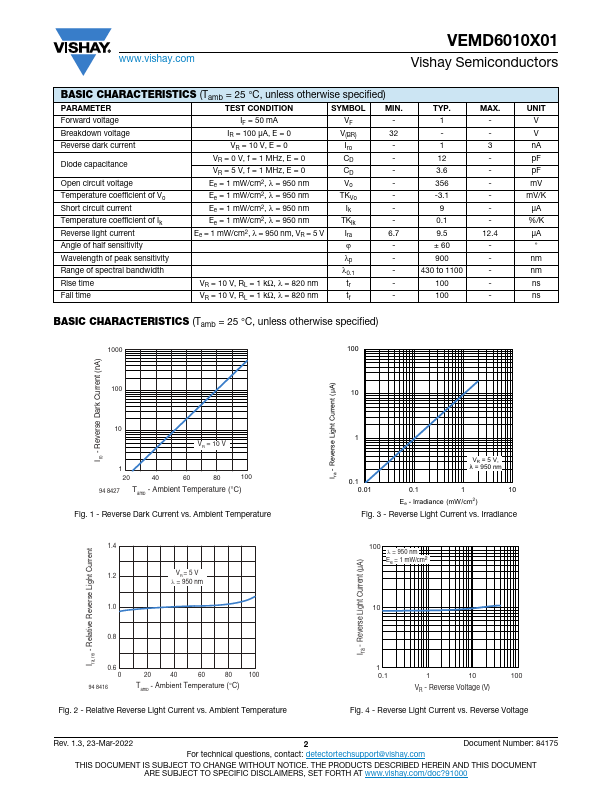

datasheet Preview Page 2

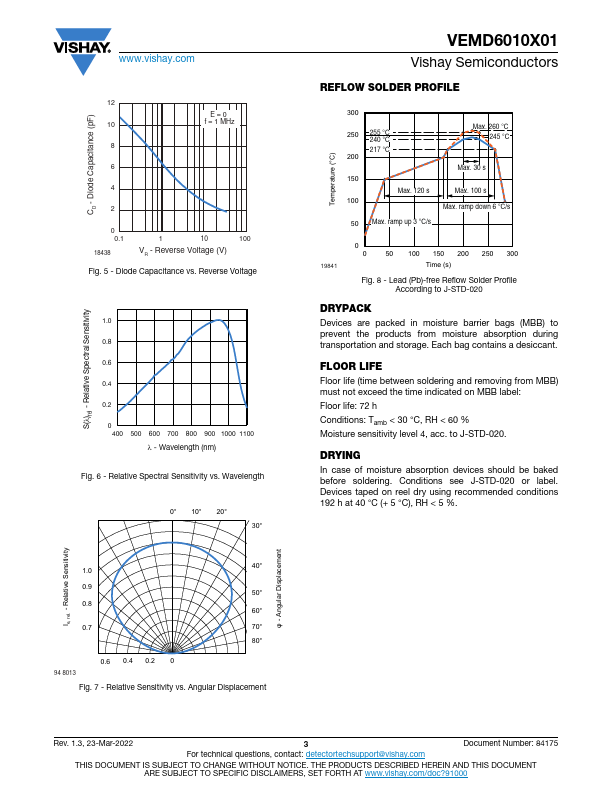

datasheet Preview Page 3

Datasheet Details

Part number	VEMD6010X01
Manufacturer	Vishay
File Size	161.09 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD6010X01-Vishay.pdf

VEMD6010X01 Product details

Description

VEMD6010X01 is a high speed and high sensitive PIN photodiode.

Features

Package type: surface-mount.
Package form: 1206.
Dimensions (L x W x H in mm): 4 x 2 x 1.05.
Radiant sensitive area (in mm2): 0.85.
High photo sensitivity.
High sensitivity.
Suitable for visible and near infrared radiation.
Fast response times.
Angle of half sensitivity: ϕ = ± 60°.
Floor life: 72 h, MSL 4, according to J-STD-020.
Lead (Pb)-free reflow soldering.
AEC-Q101 qualified.
