VEMD8082 - Silicon PIN Photodiode

Vishay

📥 Download Datasheet

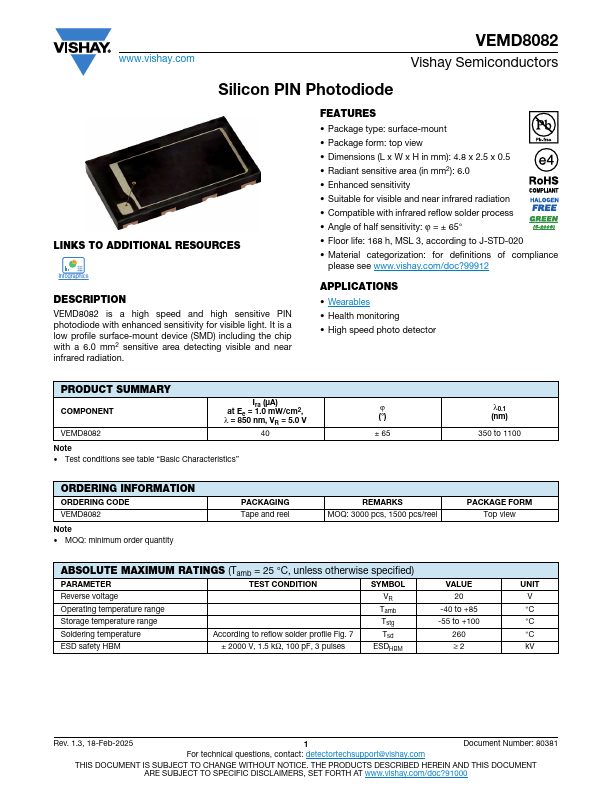

VEMD8082 Datasheet Preview — Preview of VEMD8082 PDF

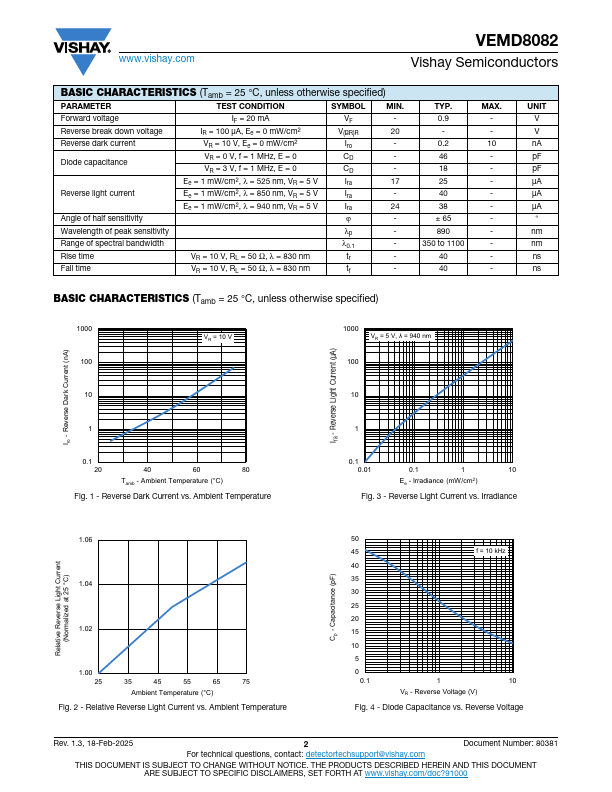

datasheet Preview Page 2

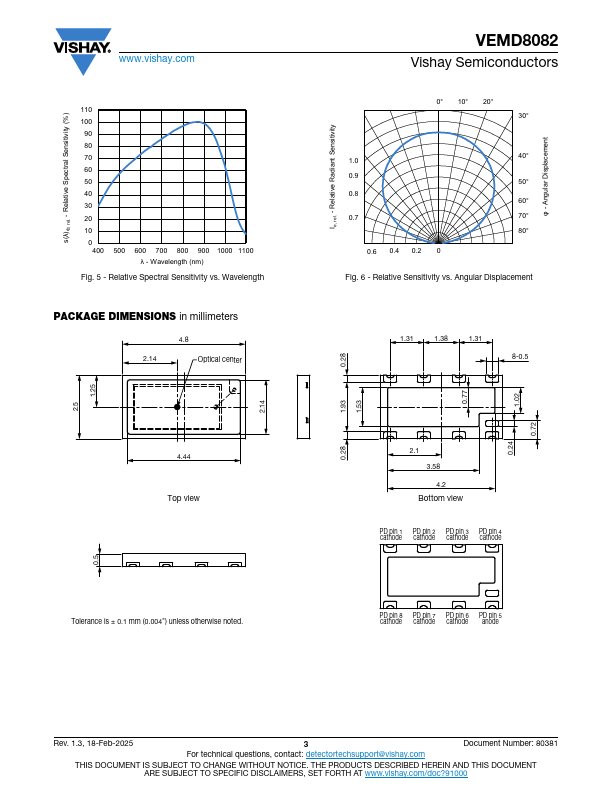

datasheet Preview Page 3

Datasheet Details

Part number	VEMD8082
Manufacturer	Vishay
File Size	194.09 KB
Description	Silicon PIN Photodiode
Datasheet	VEMD8082-Vishay.pdf

VEMD8082 Product details

Description

VEMD8082 is a high speed and high sensitive PIN photodiode with enhanced sensitivity for visible light.

Features

Package type: surface-mount.
Package form: top view.
Dimensions (L x W x H in mm): 4.8 x 2.5 x 0.5.
Radiant sensitive area (in mm2): 6.0.
Enhanced sensitivity.
Suitable for visible and near infrared radiation.
Compatible with infrared reflow solder process.
Angle of half sensitivity: ϕ = ± 65°.
Floor life: 168 h, MSL 3, according to J-STD-020.
Material categorization: for definitions of compliance please s.
