VESD01C1-02V - Single-Line ESD-Protection Diode

Product Overview

Vishay

📥 Download Datasheet

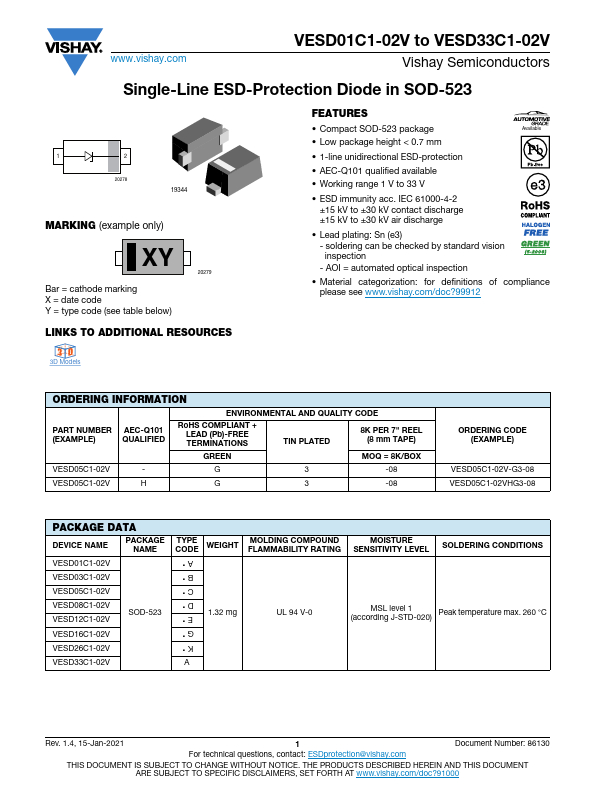

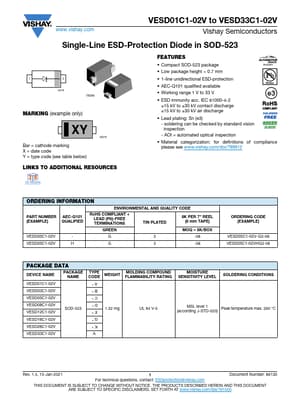

VESD01C1-02V Single-Line ESD-Protection Diode by Vishay - Datasheet Preview — Datasheet preview – VESD01C1-02V

Datasheet Details

Part number	VESD01C1-02V
Manufacturer	Vishay
File Size	128.53 KB
Description	Single-Line ESD-Protection Diode
Datasheet	VESD01C1-02V Datasheet

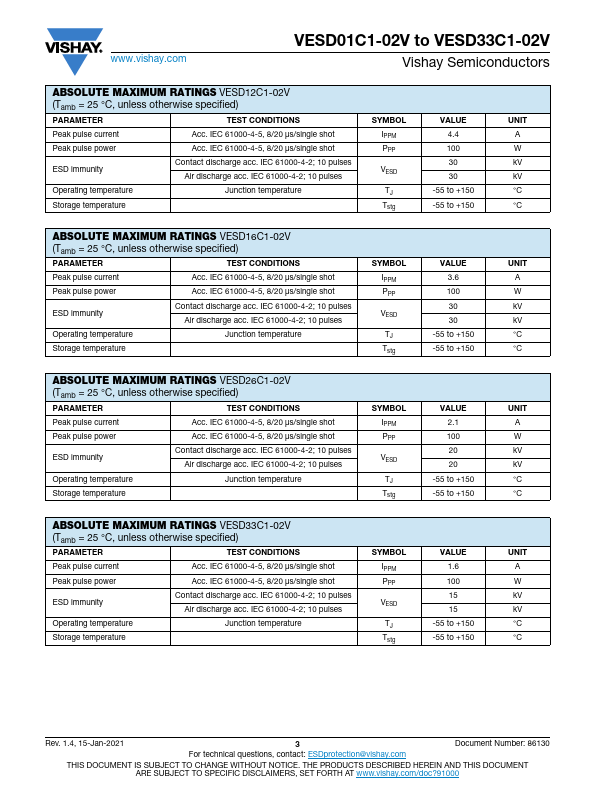

Additional preview pages of the VESD01C1-02V datasheet.

Product details

Features

Compact SOD-523 package Available.
Low package height < 0.7 mm.
1-line unidirectional ESD-protection.
AEC-Q101 qualified available.
Working range 1 V to 33 V.
ESD immunity acc. IEC 61000-4-2 ±15 kV to ±30 kV contact discharge ±15 kV to ±30 kV air discharge.
Lead plating: Sn (e3) - soldering can be checked by standard vision inspection - AOI = automated optical inspection.
Material categorization: for definitions of.
