VESD05C-FC1, Flip Chip Protection Diode

www.DataSheet4U.com VISHAY VESD05C-FC1 Vishay Semiconductors Flip Chip Protection Diode - Chip Size 0402 .
Flip Chip is a chip with all packaging and interconnections manufactured on the wafer prior to dicing.

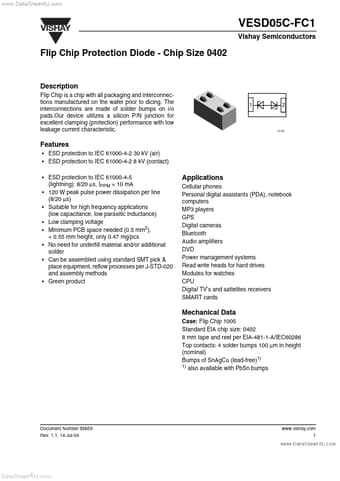

datasheet Preview Page 1 from Datasheet4u.com

VESD05C-FC1_VishaySiliconix.pdf

VESD05C-FC1 Datasheet Preview — Preview of VESD05C-FC1 PDF

Datasheet Details

Part number:

VESD05C-FC1

Manufacturer:

Vishay ↗ Siliconix

File Size:

268.14 KB

Description:

Flip Chip Protection Diode

Features

* ESD protection to IEC 61000-4-2 30 kV (air)
* ESD protection to IEC 61000-4-2 8 kV (contact)
* ESD protection to IEC 61000-4-5 (lightning): 8/20 µs, IPPM = 10 mA
* 120 W peak pulse power dissipation per line (8/20 µs)
* Suitable for high frequency applicatio

Applications

* (low capacitance, low parasitic inductance)
* Low clamping voltage
* Minimum PCB space needed (0.5 mm2), < 0.55 mm height, only 0.47 mg/pcs
* No need for underfill material and/or additional solder
* Can be assembled using standard SMT pick & place equipment, reflow p
