VESD05-02V, VESD01-02V - (VESDxx-02V) Single ESD-Protection Diode

VESD05-02V Description

www.DataSheet.co.kr VESDxx-02V Vishay Semiconductors Single ESD-Protection Diode in SOD-523 .

VESD05-02V Features

* Single-line ESD-protection
* Low leakage current 1 2 20278
* ESD-immunity acc. IEC 61000-4-2 ± 8 kV contact discharge ± 15 kV air discharge 19344
* e3 - Sn
* Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC MARKING (example onl

VESD05-02V Applications

* are based on Vishay’s knowledge of typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular produ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VESD05-02V, VESD01-02V. Please refer to the document for exact specifications by model.

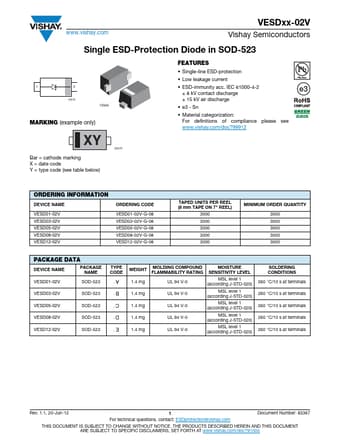

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VESD05-02V, VESD01-02V
Manufacturer
Vishay ↗
File Size
79.74 KB
Datasheet
VESD01-02V_Vishay.pdf
Description
(VESDxx-02V) Single ESD-Protection Diode
Note
This datasheet PDF includes multiple part numbers: VESD05-02V, VESD01-02V.
Please refer to the document for exact specifications by model.
