VESD05A1C-HD1 - ESD Protection Diode

VESD05A1C-HD1 Description

www.vishay.com VESD05A1C-HD1 Vishay Semiconductors ESD Protection Diode in LLP1006-2L 21 20856 20855 MARKING (example only) XY Bar = cathode mar.

VESD05A1C-HD1 Features

* Ultra compact LLP1006-2L package
* Low package height < 0.4 mm
* 1-line ESD protection
* Low leakage current < 0.2 μA
* Low load capacitance CD = 38 pF (VR = 2.5 V; f = 1 MHz)
* ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air

📥 Download Datasheet

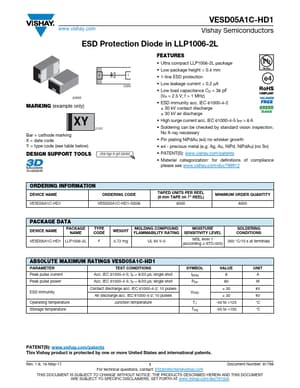

Preview of VESD05A1C-HD1 PDF
