VESD05A4A-HS4 - 4-Line (Quad) ESD Protection Diode Array

Product Overview

Vishay

📥 Download Datasheet

VESD05A4A-HS4 4-Line (Quad) ESD Protection Diode Array by Vishay - Datasheet Preview — Datasheet preview – VESD05A4A-HS4

Datasheet Details

Part number	VESD05A4A-HS4
Manufacturer	Vishay
File Size	228.91 KB
Description	4-Line (Quad) ESD Protection Diode Array
Datasheet	VESD05A4A-HS4 Datasheet

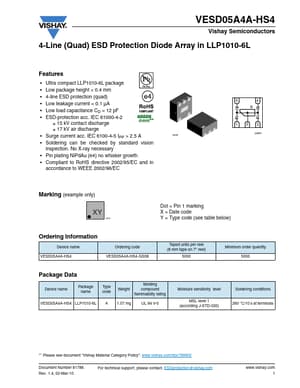

Additional preview pages of the VESD05A4A-HS4 datasheet.

Product details

Features

Ultra compact LLP1010-6L package Low package height < 0.4 mm 4-line ESD protection (quad) Low leakage current < 0.1 µA Low load capacitance CD = 12 pF ESD-protection acc. IEC 61000-4-2 ± 15 kV contact discharge ± 17 kV air discharge Surge current acc. IEC 6100-4-5 IPP > 2.5 A Soldering can be checked by standard vision inspection. No X-ray necessary Pin plating NiPdAu (e4) no whisker growth Compliant to RoHS directive 2002/95/EC and in.
