Part number:
VESD05A1B-02Z
Manufacturer:
File Size:
172.69 KB
Description:
Esd-protection diode.

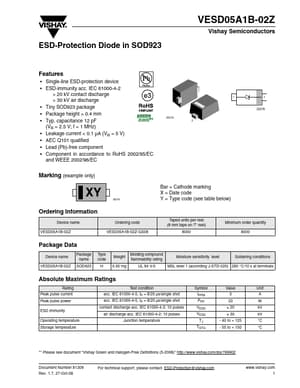

VESD05A1B-02Z Datasheet (172.69 KB)
* Single-line ESD-protection device
* ESD-immunity acc. IEC 61000-4-2 > 20 kV contact discharge > 30 kV air discharge
* Tiny SOD923 package
* Package height = 0.4 mm
* Typ. capacitance 12 pF (VR = 2.5 V; f = 1 MHz)
* Leakage current < 0.1 µA (VR = 5 V)
VESD05A1B-02Z Datasheet (172.69 KB)
VESD05A1B-02Z
172.69 KB
Esd-protection diode.
