VESD03A1C-02Z

ESD-Protection Diode

VESD03A1C-02Z Features

* Single-line ESD-protection device

* ESD-immunity acc. IEC 61000-4-2 > 30 kV contact discharge > 30 kV air discharge

* Tiny SOD923 package

* Package height = 0.4 mm

* Typ. capacitance 46 pF (VR = 2.5 V; f = 1 MHz)

* Leakage current < 0.5 µA (VR = 3.3

VESD03A1C-02Z Datasheet (192.03 KB)

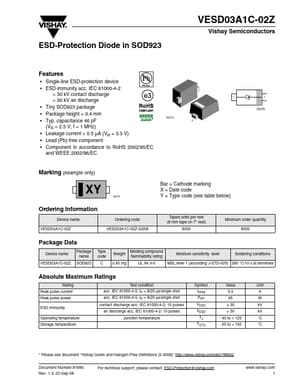

Preview of VESD03A1C-02Z PDF

Datasheet Details

Part number:

VESD03A1C-02Z

Manufacturer:

Vishay ↗

File Size:

192.03 KB

Description:

Esd-protection diode.
