VESD12A1A-HD1 - ESD Protection Diode

Vishay

📥 Download Datasheet

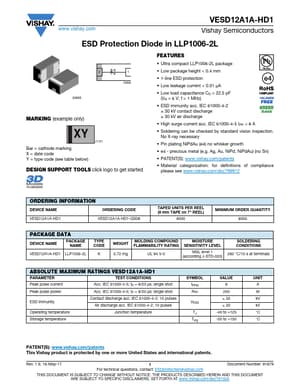

VESD12A1A-HD1 Datasheet Preview — Preview of VESD12A1A-HD1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	VESD12A1A-HD1
Manufacturer	Vishay
File Size	122.83 KB
Description	ESD Protection Diode
Datasheet	VESD12A1A-HD1-Vishay.pdf

VESD12A1A-HD1 Product details

Features

Ultra compact LLP1006-2L package.
Low package height < 0.4 mm.
1-line ESD protection.
Low leakage current < 0.01 μA.
Low load capacitance CD = 22.5 pF (VR = 6 V; f = 1 MHz).
ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air discharge.
High surge current acc. IEC 61000-4-5 IPP > 8 A.
Soldering can be checked by standard vision inspection. No X-ray necessary.
Pin plating NiPdAu (e4) no whisker gro.
