* Ultra compact LLP1006-2L package
* Low package height < 0.4 mm
* 1-line ESD protection
* Low leakage current < 0.01 μA
* Low load capacitance CD = 45 pF (VR = 0 V; f = 1 MHz)
* ESD immunity acc. IEC 61000-4-2 ± 30 kV contact discharge ± 30 kV air dis

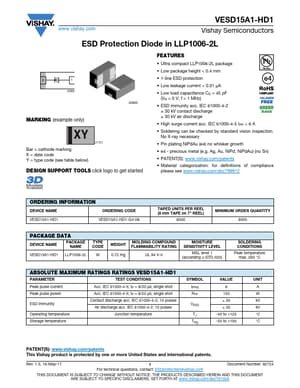

VESD15A1-HD1 Datasheet (126.38 KB)
VESD15A1-HD1
126.38 KB
Esd protection diode.
www.vishay.com
VESD15A1-HD1
Vishay Semiconductors
ESD Protection Diode in LLP1006-2L
21
20856
20855
MARKING (example only)
XY
Bar = cathode mark.
