VI20120SG, High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com V20120SG, VI20120SG Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.54 V at IF = 5 A.

VI20120SG_Vishay.pdf

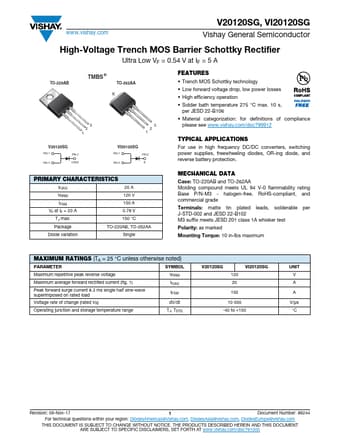

VI20120SG Datasheet Preview — Preview of VI20120SG PDF

Datasheet Details

Part number:

VI20120SG

Manufacturer:

Vishay ↗

File Size:

134.93 KB

Description:

High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* Material categorization: for definitions of compliance please see www. vishay. com/doc?99912

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) 20 A VRRM 120 V IFSM VF at IF = 20 A 150 A 0.78 V TJ max. 150 °C Package TO-220AB, TO-262AA Diode variation Single MEC
