VIT1045C, Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

New Product VT1045C, VIT1045C Vishay General Semiconductor Dual Low-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.34 V at IF = 2.5 .

datasheet Preview Page 1 from Datasheet4u.com

VIT1045C_Vishay.pdf

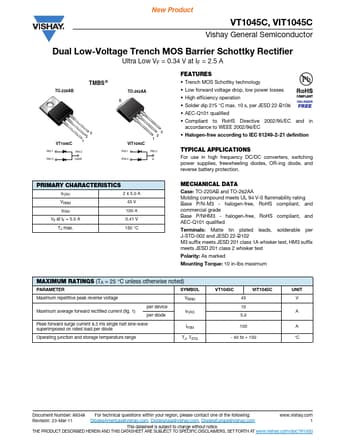

VIT1045C Datasheet Preview — Preview of VIT1045C PDF

Datasheet Details

Part number:

VIT1045C

Manufacturer:

Vishay ↗

File Size:

189.51 KB

Description:

Dual Low-Voltage Trench MOS Barrier Schottky Rectifier

Features

* TMBS TO-220AB ®
* Trench MOS Schottky technology TO-262AA
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder dip 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified
* Compliant to RoHS Directive 2002/95/EC and in ac

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. 2 x 5.0 A 45 V 100 A 0.41 V 150 °C MECHANICAL DATA Case: TO-220AB and TO-262AA Molding compound
