VIT1060C, Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.DataSheet.co.kr New Product VT1060C, VIT1060C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF.

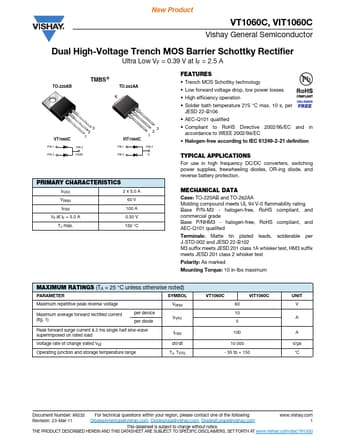

datasheet Preview Page 1 from Datasheet4u.com

VIT1060C_Vishay.pdf

VIT1060C Datasheet Preview — Preview of VIT1060C PDF

Datasheet Details

Part number:

VIT1060C

Manufacturer:

Vishay ↗

File Size:

188.00 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Solder bath temperature 275 °C max. 10 s, per JESD 22-B106
* AEC-Q101 qualified 2 VT1060C PIN 1 PIN 3 PIN 2 CASE 3 1 VIT1060C PIN 1 PIN 3 2 3 1

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. 2 x 5.0 A 60 V 100 A 0.50 V 150 °C MECHANICAL DATA Case: TO-220AB and TO-262AA Molding compound
