VLSL4012A

High Brightness LED Power Module

VLSL4012A Features

* Metal core PCB: Al > 0.75 thickness

* Single side/single layer PCB

* Shiny white surface

* 12, 24, or 36 LEDs, max. current per LED 1 A

* Conductive top layer: Cu (min. 18 μm)

* Isolation layer prepreg > 63 μm

* Standard solder mask material

VLSL4012A General Description

The VLSL40xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs. The color temperature is cool white in the typical range of 5000 K to 7000 K. The modules are designed for flexible use due to the option for using special reflectors to adjust the emissi.

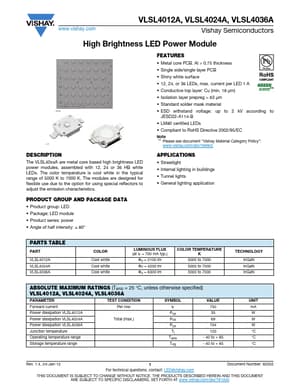

VLSL4012A Datasheet (233.01 KB)
