VLSL4124A

High Brightness LED Power Module

VLSL4124A Features

* Metal core PCB: Al > 0.75 thickness

* Single side/single layer PCB

* Shiny white surface

* 12, 24 or 36 LED’s minimum 71 lm at 350 mA per LED. Max. current per LED 1 A

* Conductive top layer: Cu (min. 18 μm)

* Isolation layer prepreg > 63 μm

VLSL4124A General Description

The VLSL41xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs. The color temperature is natural white. The typical color temperature is 4000 K. The modules are designed for flexible use due to the option for using special reflectors to adjust the emi.

VLSL4124A Datasheet (221.30 KB)

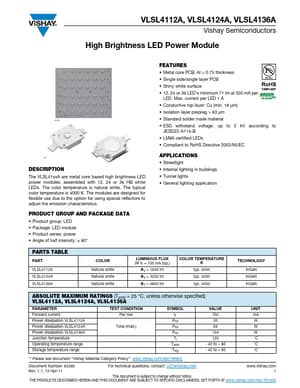

Preview of VLSL4124A PDF
