VLSL4036A

High Brightness LED Power Module

VLSL4036A Features

* Metal core PCB: Al > 0.75 thickness

* Single side/single layer PCB

* Shiny white surface

* 12, 24, or 36 LEDs, max. current per LED 1 A

* Conductive top layer: Cu (min. 18 μm)

* Isolation layer prepreg > 63 μm

* Standard solder mask material

VLSL4036A General Description

The VLSL40xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs. The color temperature is cool white in the typical range of 5000 K to 7000 K. The modules are designed for flexible use due to the option for using special reflectors to adjust the emissi.

VLSL4036A Datasheet (233.01 KB)

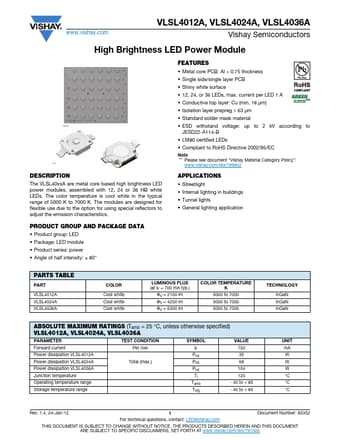

Preview of VLSL4036A PDF

Datasheet Details

Part number:

VLSL4036A

Manufacturer:

Vishay ↗

File Size:

233.01 KB

Description:

High brightness led power module.
