VLSL4224A

High Brightness LED Power Module

VLSL4224A Features

* Metal core PCB: Al > 0.75 thickness

* Single side/single layer PCB

* Shiny white surface

* 12, 24 or 36 LED’s minimum 61 lm at 350 mA per LED. Max. current per LED 1 A

* Conductive top layer: Cu (min. 18 μm)

* Isolation layer prepreg > 63 μm

VLSL4224A General Description

The VLSL42xxA are metal core based high brightness LED power modules, assembled with 12, 24 or 36 HB white LEDs. The color temperature is typ. 3500 K warm white. The modules are designed for flexible use due to the option for using special reflectors to adjust the emission characteristics. PRODUCT G.

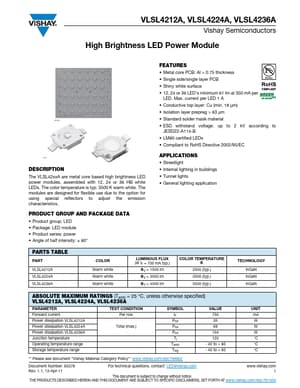

VLSL4224A Datasheet (224.93 KB)

Preview of VLSL4224A PDF

Datasheet Details

Part number:

VLSL4224A

Manufacturer:

Vishay ↗

File Size:

224.93 KB

Description:

High brightness led power module.
