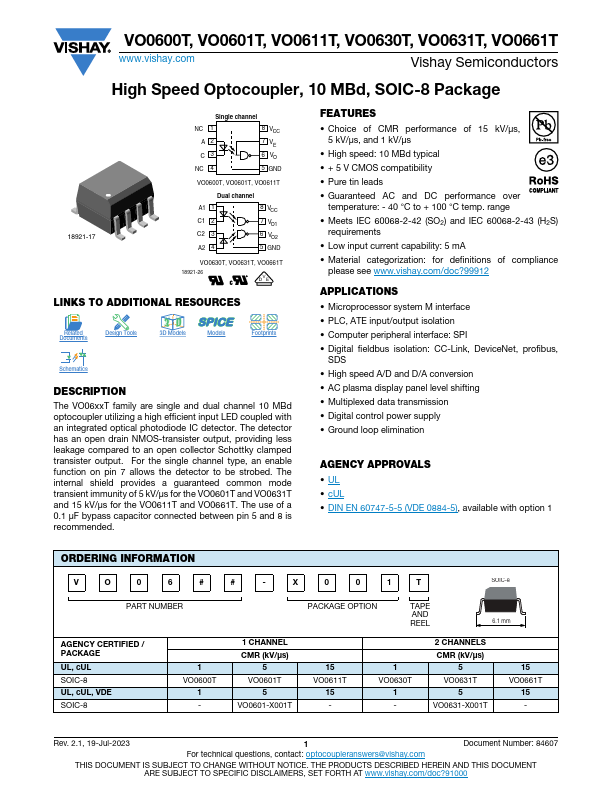

VO0600T High-Speed Optocoupler

The VO06xxT family are single and dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transister output, providing less leakage compared to an open collector Schottky clamped transister ou.

VO0600T Features

* Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1 kV/μs

* High speed: 10 MBd typical

* + 5 V CMOS compatibility

* Pure tin leads

* Guaranteed AC and DC performance over temperature: - 40 °C to + 100 °C temp. range

* Meets IEC 60068-2-42 (SO2) and

VO0600T Datasheet (184.43 KB)
