VO0611T

High-Speed Optocoupler

Vishay

VO0611T Features

* Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1 kV/μs

* High speed: 10 MBd typical

* + 5 V CMOS compatibility

* Pure tin leads

* Guaranteed AC and DC performance over temperature: - 40 °C to + 100 °C temp. range

* Meets IEC 60068-2-42 (SO2) and

VO0611T General Description

The VO06xxT family are single and dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transister output, providing less leakage compared to an open collector Schottky clamped transister ou.

VO0611T Datasheet (149.48 KB)

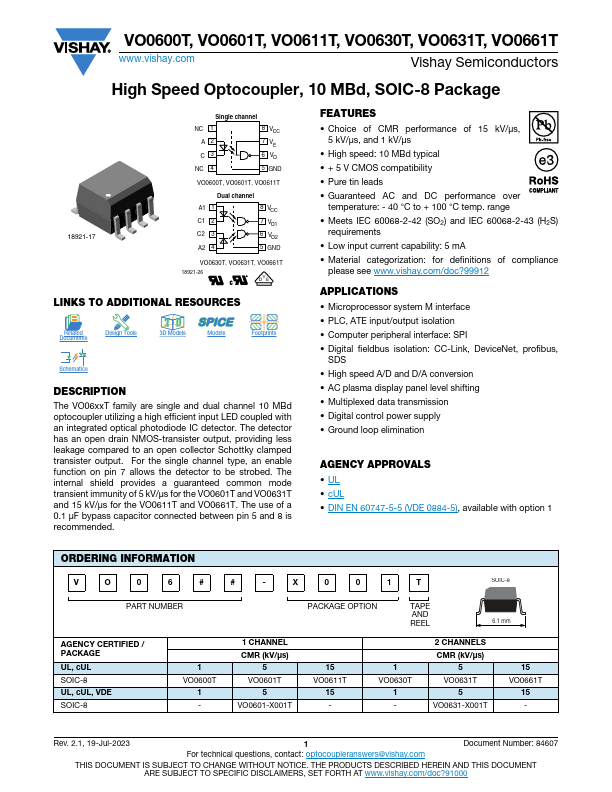

VO0611T Datasheet Preview — Preview of VO0611T PDF

Datasheet Details

Part number:

VO0611T

Manufacturer:

Vishay ↗

File Size:

149.48 KB

Description:

High-speed optocoupler.
VO0600T, VO0601T, VO0611T, VO0630T, VO0631T, VO0661T www.vishay.com Vishay Semiconductors High Speed Optocoupler, 10 MBd, SOIC-8 Package 18921-17 .
