Datasheet Details
Part number:
VO0630T, VO0600T
Manufacturer:
File Size:
184.43 KB
Description:
High-speed optocoupler.
Note:
This datasheet PDF includes multiple part numbers: VO0630T, VO0600T.
Please refer to the document for exact specifications by model.

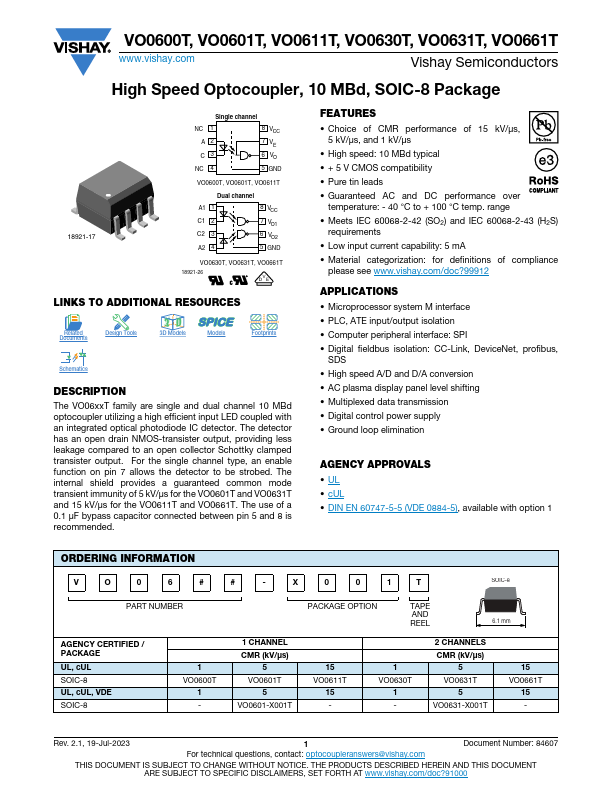

The VO06xxT family are single and dual channel 10 MBd optocoupler utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector.
The detector has an open drain NMOS-transister output, providing less leakage compared to an open collector Schottky clamped transister ou
VO0630T Features
* Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1 kV/μs
* High speed: 10 MBd typical
* + 5 V CMOS compatibility
* Pure tin leads
* Guaranteed AC and DC performance over temperature: - 40 °C to + 100 °C temp. range
* Meets IEC 60068-2-42 (SO2) and
