VO2601

High Speed Optocoupler

VO2601 Features

* Choice of CMR performance of 15 kV/μs, 5 kV/μs, and 1000 V/μs

* High speed: 10 MBd typical

* +5 V CMOS compatibility

* Pure tin leads

* Guaranteed AC and DC performance over temperature

* Meets IEC 60068-2-42 (SO2) and IEC 60068-2-43 (H2S) requiremen

VO2601 General Description

The 6N137, VO2601, and VO2611 are single channel 10 MBd optocouplers utilizing a high efficient input LED coupled with an integrated optical photodiode IC detector. The detector has an open drain NMOS-transistor output, providing less leakage compared to an open collector Schottky clamped transistor.

VO2601 Datasheet (248.76 KB)

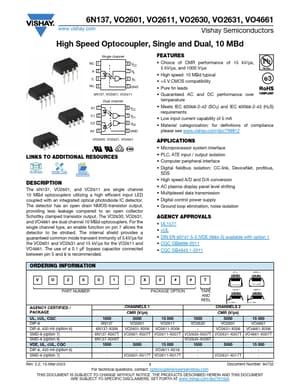

Preview of VO2601 PDF
