VO2223A

Optocoupler

VO2223A Features

* Maximum trigger current (IFT): 10 mA

* Isolation test voltage 5300 VRMS

* Peak off-state voltage 600 V

* Load current 1 ARMS

* dV/dt of 210 V/μs

* DIP-8 package

* Pure tin leads

* Material categorization: for definitions of compliance

VO2223A General Description

The VO2223A is an optically couple phototriac driving a power triac in a DIP-8 package. It provides a 5300 V of input to output isolation. ORDERING INFORMATION V O 2 2 2 3 A - X 0 0 # DIP-8 Option 7 PART NUMBER AGENCY CERTIFIED / PACKAGE UL, cUL DIP-8 DIP-8, option 7 UL, cUL, VDE (op.

VO2223A Datasheet (175.60 KB)

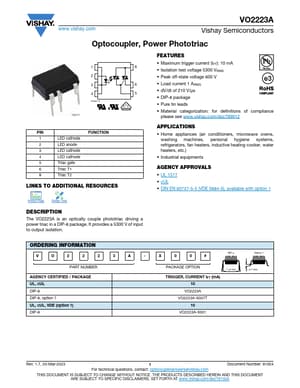

Preview of VO2223A PDF

Datasheet Details

Part number:

VO2223A

Manufacturer:

Vishay ↗ Siliconix

File Size:

175.60 KB

Description:

Optocoupler.
www.vishay.com VO2223A Vishay Semiconductors Optocoupler, Power Phototriac 1 2 3 4 21081-4 23171 8 6 5 DV E PIN FUNCTION 1 LED cathode 2 LED.
