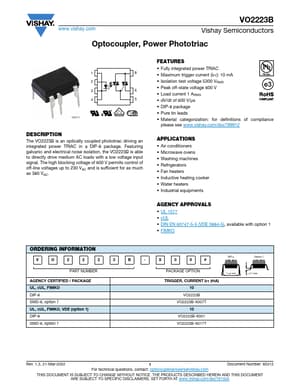

datasheet Preview Page 1 from Datasheet4u.com

VO2223B Optocoupler

www.vishay.com VO2223B Vishay Semiconductors Optocoupler, Power Phototriac 1 2 3 4 23171 8 6 5 DV E .
The VO2223B is an optically coupled phototriac driving an integrated power TRIAC in a DIP-8 package.

VO2223B-Vishay.pdf

VO2223B Datasheet Preview — Preview of VO2223B PDF

Datasheet Details

Part number:

VO2223B

Manufacturer:

Vishay ↗

File Size:

170.26 KB

Description:

Optocoupler

Features

* Fully integrated power TRIAC
* Maximum trigger current (IFT): 10 mA
* Isolation test voltage 5300 VRMS
* Peak off-state voltage 600 V
* Load current 1 ARMS
* dV/dt of 600 V/μs
* DIP-8 package
* Pure tin leads
* Material catego

Applications

* Air conditioners
* Microwave ovens
* Washing machines
* Refrigerators
* Fan heaters
* Inductive heating cooker
* Water heaters
* Industrial equipments AGENCY APPROVALS
* UL 1577
* cUL
* DIN EN 60747-5-5 (VDE 08
