VO223AT

Optocoupler

Vishay

VO223AT Features

* A 1 C 2 NC 3 NC 4 i179022-2 i179074 8 NC 7 B 6 C 5 E

* Isolation test voltage, 4000 VRMS

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 AGENCY APPROVALS C

* UL1577, file no. E52744 system code Y

* cUL - file no. E52744

VO223AT General Description

The VO221AT, VO222AT, VO223AT are high current transfer ratio (CTR) optocouplers with a gallium arsenide infrared LED emitter and a silicon NPN photodarlington transistor detector. The device has a CTR tested at 1 mA LED current. This low drive current permits easy interfacing from CMOS to LSTTL or .

VO223AT Datasheet (113.09 KB)

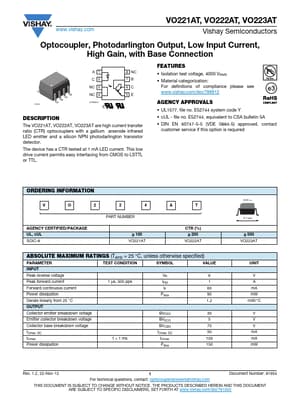

VO223AT Datasheet Preview — Preview of VO223AT PDF

Datasheet Details

Part number:

VO223AT

Manufacturer:

Vishay ↗

File Size:

113.09 KB

Description:

Optocoupler.
VO221AT, VO222AT, VO223AT www.vishay.com Vishay Semiconductors Optocoupler, Photodarlington Output, Low Input Current, High Gain, with Base Connecti.
