VO2223

Power Phototriac

VO2223 Features

* Maximum trigger current (IFT): 10 mA Isolation test voltage 5300 VRMS Peak off-state voltage 600 V Load current 0.9 ARMS dV/dt of 210 V/µs DIP-8 package Pure tin leads Compliant to RoHS directive 2002/95/EC Pin 1 2 3 4

VO2223 General Description

The VO2223 is an optically couple phototriac driving a power triac in a DIP-8 package. It provides a 5300 V of input to output isolation. AGENCY APPROVALS

* UL - E52744 system code H

* cUL - E52744 system code H

* VDE - DIN EN 60747-5-5 (VDE 0884) ORDER INFORMATION PART VO2.

VO2223 Datasheet (111.70 KB)

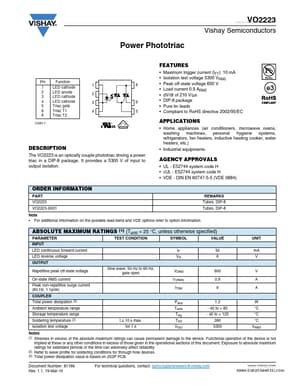

Preview of VO2223 PDF

Datasheet Details

Part number:

VO2223

Manufacturer:

Vishay ↗ Siliconix

File Size:

111.70 KB

Description:

Power phototriac.
