VOD206T Datasheet - Vishay

Optocoupler

VOD206T Features

* A1 C2 A3 C4 i179018-1 i179074 8C 7E 6C 5E V D E

* Two channel coupler

* SOIC-8 surface mountable package

* Standard lead spacing of 0.05"

* Available only on tape and reel option (conforms to EIA standard 481-2)

* Isolation test voltage, 4000 VRMS

VOD206T General Description

The VOD205T, VOD206T, VOD207T, VOD211T, VOD213T, VOD217T are optically coupled pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between inpu.

VOD206T Datasheet (118.34 KB)

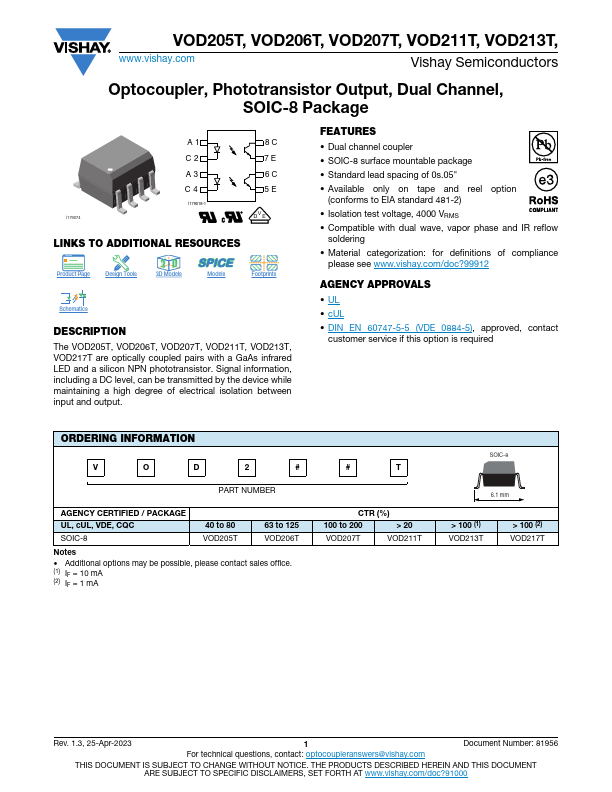

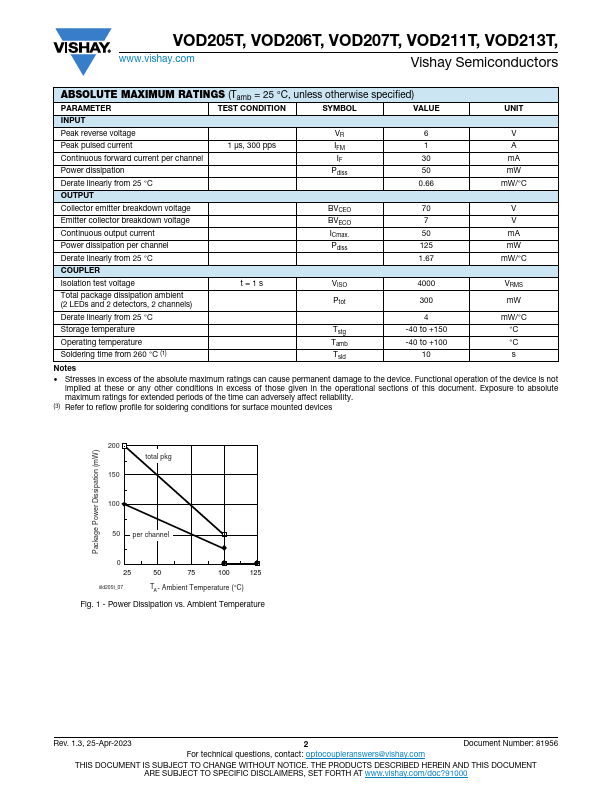

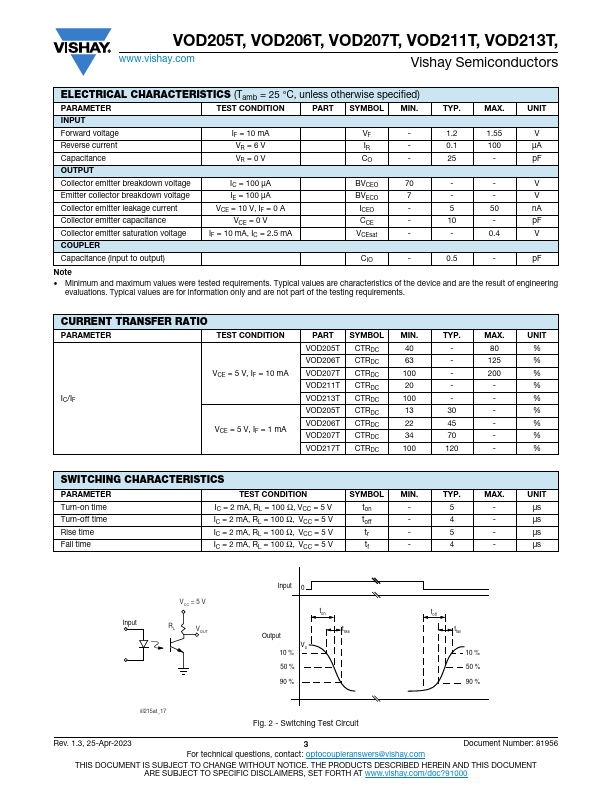

VOD206T Datasheet Preview — Preview of VOD206T PDF

Datasheet Details

Part number:

VOD206T

Manufacturer:

Vishay ↗

File Size:

118.34 KB

Description:

Optocoupler.
VOD205T, VOD206T, VOD207T, VOD211T, VOD213T, VOD217T www.vishay.com Vishay Semiconductors Optocoupler, Phototransistor Output, Dual Channel, SOIC-8 .

📁 Related Datasheet

VOD205T Optocoupler (Vishay)

VOD207T Optocoupler (Vishay)

VOD211T Optocoupler (Vishay)

VOD213T Optocoupler (Vishay)

VOD217T Optocoupler (Vishay)

VOD223T Optocoupler (Vishay)

VOD3120AB 2.5A Output Current IGBT and MOSFET Driver (Vishay)

VOD3120AD 2.5A Output Current IGBT and MOSFET Driver (Vishay)

VOD3120AG 2.5A Output Current IGBT and MOSFET Driver (Vishay)

VO0600T High-Speed Optocoupler (Vishay)

TAGS

VOD206T Optocoupler Vishay

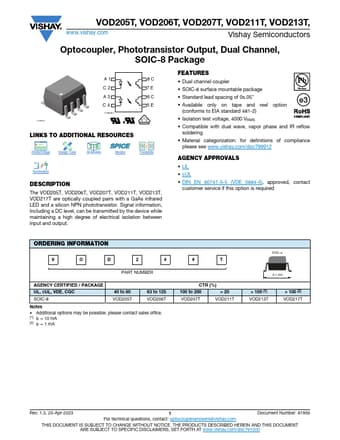

Image Gallery
