VOD211T, VOD205T Datasheet - Vishay

VOD205T-Vishay.pdf

This datasheet PDF includes multiple part numbers: VOD211T, VOD205T. Please refer to the document for exact specifications by model.

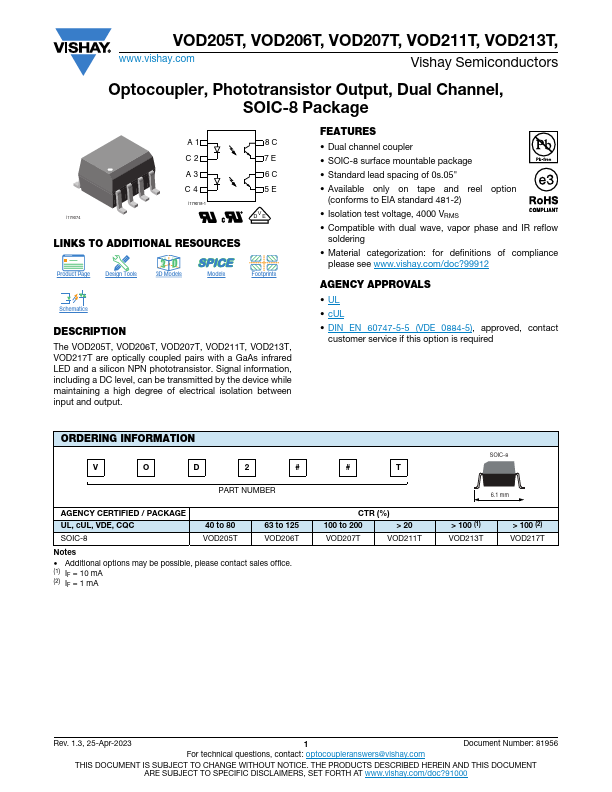

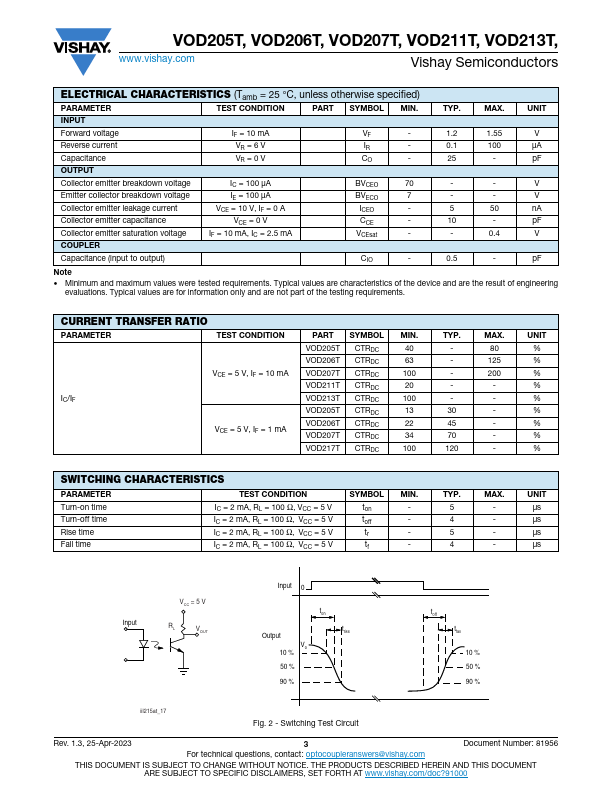

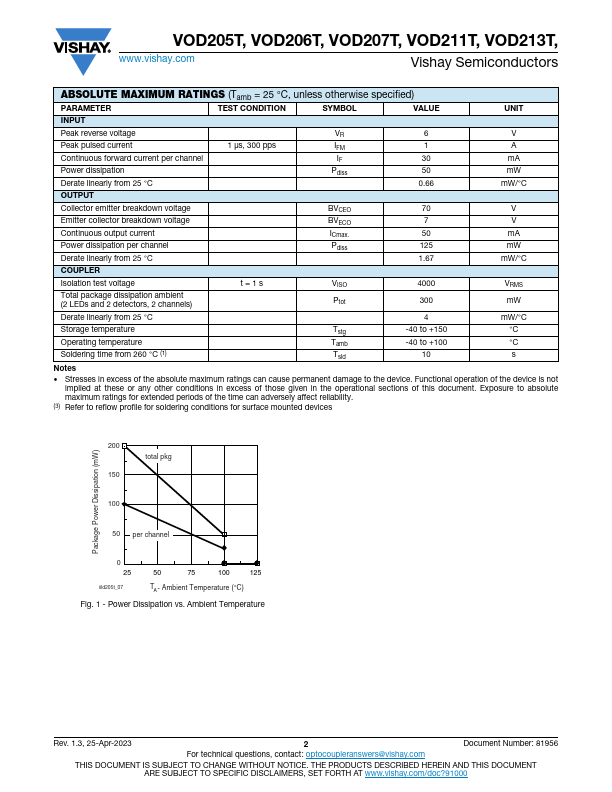

VOD211T Datasheet Preview Page 2 VOD211T Datasheet Preview Page 3

Datasheet Details

Part number:

VOD211T, VOD205T

Manufacturer:

Vishay ↗

File Size:

166.71 KB

Description:

Optocoupler.

Note:

This datasheet PDF includes multiple part numbers: VOD211T, VOD205T.
Please refer to the document for exact specifications by model.

VOD211T, VOD205T, Optocoupler

The VOD205T, VOD206T, VOD207T, VOD211T, VOD213T, VOD217T are optically coupled pairs with a GaAs infrared LED and a silicon NPN phototransistor.

Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output

VOD211T Features

* Dual channel coupler

* SOIC-8 surface mountable package

* Standard lead spacing of 0s.05"

* Available only on tape and reel option (conforms to EIA standard 481-2)

* Isolation test voltage, 4000 VRMS

* Compatible with dual wave, vapor phase and IR re
