Optocoupler

VOD213T Features

* A1 C2 A3 C4 i179018-1 i179074 8C 7E 6C 5E V D E

* Two channel coupler

* SOIC-8 surface mountable package

* Standard lead spacing of 0.05"

* Available only on tape and reel option (conforms to EIA standard 481-2)

* Isolation test voltage, 4000 VRMS

VOD213T General Description

The VOD205T, VOD206T, VOD207T, VOD211T, VOD213T, VOD217T are optically coupled pairs with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between inpu.

VOD213T Datasheet (118.34 KB)

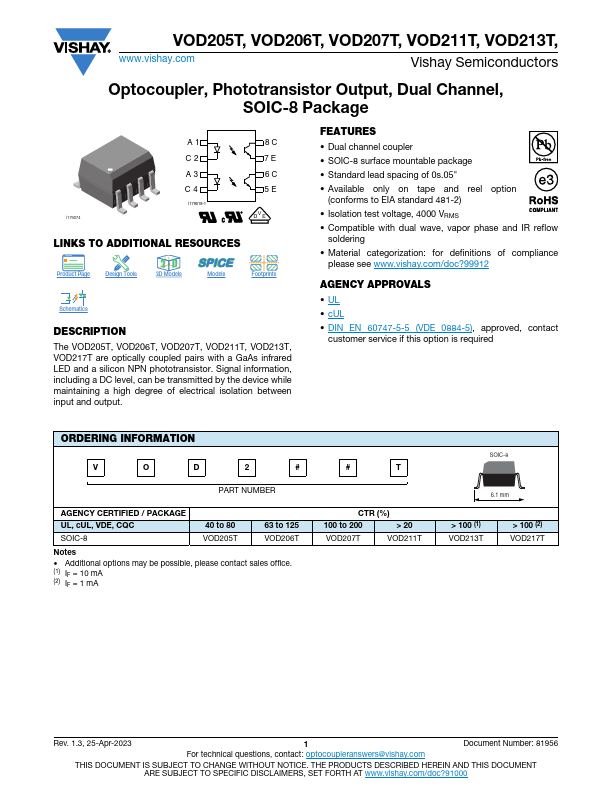

VOD213T Datasheet Preview — Preview of VOD213T PDF

Datasheet Details

Part number:

VOD213T

Manufacturer:

Vishay ↗

File Size:

118.34 KB

Description:

Optocoupler.
VOD205T, VOD206T, VOD207T, VOD211T, VOD213T, VOD217T www.vishay.com Vishay Semiconductors Optocoupler, Phototransistor Output, Dual Channel, SOIC-8 .
