VS-10ETS12-M3

Input Rectifier Diode

VS-10ETS12-M3 Features

* Very low forward voltage drop

* 150 °C max. operating junction temperature

* Glass passivated pellet chip junction

* Designed and qualified according to JEDEC®-JESD 47

* Material categorization: for definitions of compliance please see www.vishay.com/doc?999

VS-10ETS12-M3 General Description

High voltage rectifiers optimized for very low forward voltage drop with moderate leakage. These devices are intended for use in main rectification (single or three phase bridge). OUTPUT CURRENT IN TYPICAL APPLICATIONS APPLICATIONS SINGLE-PHASE BRIDGE Capacitive input filter TA = 55 °C, TJ = 125.

VS-10ETS12-M3 Datasheet (175.98 KB)

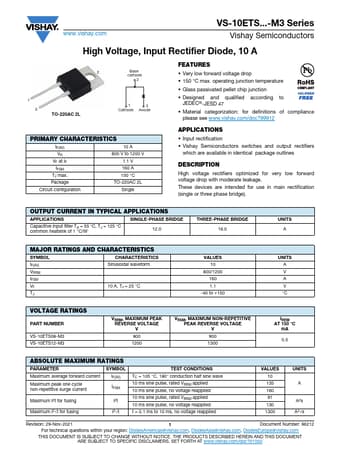

Preview of VS-10ETS12-M3 PDF

Datasheet Details

Part number:

VS-10ETS12-M3

Manufacturer:

Vishay ↗

File Size:

175.98 KB

Description:

Input rectifier diode.
www.vishay.com VS-10ETS-M3 Series Vishay Semiconductors High Voltage, Input Rectifier Diode, 10 A 2 1 3 TO-220AC 2L Base cathode 2 1 3 Cathod.
