VS-10ETS12SPbF, VS-10ETS08SPbF Datasheet - Vishay

VS-10ETS12SPbF High Voltage Surface Mount Input Rectifier Diode

The VS-10ETS..SPbF rectifier series has been optimized for very low forward voltage drop, with moderate leakage. The glass passivation technology used has reliable operation up to 150 °C junction temperature. OUTPUT CURRENT IN TYPICAL APPLICATIONS APPLICATIONS SINGLE-PHASE BRIDGE Capacitive inpu.

VS-10ETS12SPbF Features

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Designed and qualified according to JEDEC-JESD47

* Material categorization: For definitions of compliance please see www.vishay.com/doc?99912 APPLICATIONS

* Input rectification

* Vishay switches

VS-10ETS08SPbF-Vishay.pdf

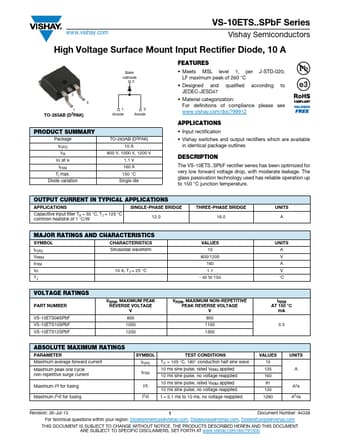

VS-10ETS12SPbF Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-10ETS12SPbF, VS-10ETS08SPbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-10ETS12SPbF, VS-10ETS08SPbF

Manufacturer:

Vishay ↗

File Size:

167.27 KB

Description:

High voltage surface mount input rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: VS-10ETS12SPbF, VS-10ETS08SPbF.
Please refer to the document for exact specifications by model.
