VS-10ETS12FPPbF, VS-10ETS08FPPbF Datasheet - Vishay

VS-10ETS12FPPbF Rectifier Diode

High voltage rectifiers optimized for very low forward voltage drop with moderate leakage. These devices are intended for use in main rectification (single or three phase bridge). OUTPUT CURRENT IN TYPI.

VS-10ETS12FPPbF Features

* Very low forward voltage drop

* 150 °C max. operating junction temperature

* Designed and qualified according to JEDEC-JESD47

* Fully isolated package (VINS = 2500 VRMS)

* UL E78996 approved

* Material categorization: For definitions of compliance p

VS-10ETS08FPPbF-Vishay.pdf

This datasheet PDF includes multiple part numbers: VS-10ETS12FPPbF, VS-10ETS08FPPbF. Please refer to the document for exact specifications by model.

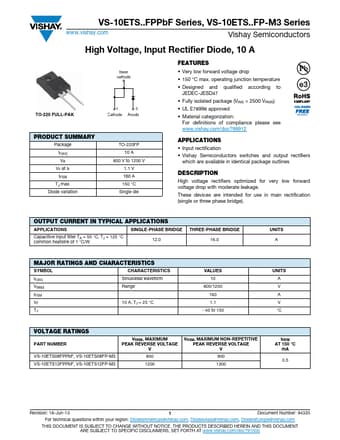

VS-10ETS12FPPbF Datasheet Preview Page 2 VS-10ETS12FPPbF Datasheet Preview Page 3

Datasheet Details

Part number:

VS-10ETS12FPPbF, VS-10ETS08FPPbF

Manufacturer:

Vishay ↗

File Size:

136.84 KB

Description:

Rectifier diode.

Note:

This datasheet PDF includes multiple part numbers: VS-10ETS12FPPbF, VS-10ETS08FPPbF.
Please refer to the document for exact specifications by model.
