VS-15CTQ035-N3, VS-15CTQ035PbF, Schottky Rectifier

VS-15CTQPbF Series, VS-15CTQ-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 7.5 A Base 2 common cathode TO-220AB Anode .
The VS-15CTQ center tap Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

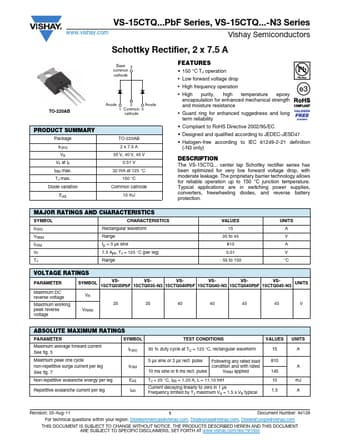

VS-15CTQ035PbF-Vishay.pdf

VS-15CTQ035-N3 Datasheet Preview — This datasheet PDF includes multiple part numbers: VS-15CTQ035-N3, VS-15CTQ035PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

VS-15CTQ035-N3, VS-15CTQ035PbF

Manufacturer:

Vishay ↗

File Size:

167.38 KB

Description:

Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: VS-15CTQ035-N3, VS-15CTQ035PbF.
Please refer to the document for exact specifications by model.

Features

* 150 °C TJ operation
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Co
