VS-15CTQ035SPbF High Performance Schottky Rectifier

VS-15CTQ035SPbF Description

www.vishay.com VS-15CTQSPbF, VS-15CTQ-1PbF Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 7.5 A VS-15CTQSPbF VS-15CTQ-1PbF .
The VS-15CTQ center tap Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

VS-15CTQ035SPbF Features

* 150 °C TJ operation
* Center tap TO-220 package
* Low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness an

VS-15CTQ035SPbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.      MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM VF TJ Rectangular waveform Range tp = 5 μs sine 7.5 Apk, TJ = 125 °C (per leg) Range VALUES 15 35 to 45 810 0.51

📥 Download Datasheet

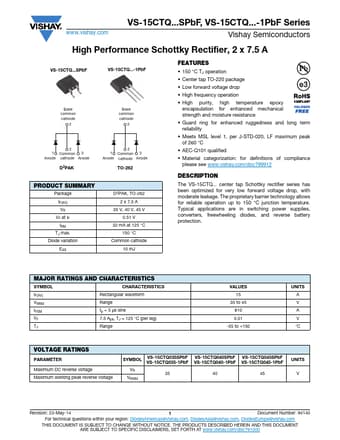

Preview of VS-15CTQ035SPbF PDF
datasheet Preview Page 2 datasheet Preview Page 3
