VS-15CTQ035S-M3 - High Performance Schottky Rectifier

The VS-15CTQ center tap Schottky rectifier series has been optimized for very low forward voltage drop, with moderate leakage.

The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature.

Typical applications are in switching power supplies, converters, freewhe

www.vishay.com VS-15CTQS-M3, VS-15CTQ-1-M3 Series Vishay Semiconductors High Performance Schottky Rectifier, 2 x 7.5 A 2 1 31 2 D2PAK (TO-263AB) 3 Base common cathode 2 TO-262AA Base common cathode 2 2 1 Common 3 Anode cathode Anode VS-15CTQS-M3 2 1 Common 3 Anode cathode Anode VS-15CTQ-1-M3 PRIMARY CHARACTERISTICS IF(AV) VR VF at IF IRM max.

TJ max.

EAS Package 2 x 7.5 A 35 V, 40 V, 45 V 0.51 V 32 mA at 125 °C 150 °C 10 mJ D2PAK (TO-263AB), TO-262AA Circuit configuration Common

VS-15CTQ035S-M3 Features

* 150 °C TJ operation

* Center tap configuration

* Low forward voltage drop

* High frequency operation

* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance

* Guard ring for enhanced ruggedness and

VS-15CTQ035S-M3-Vishay.pdf

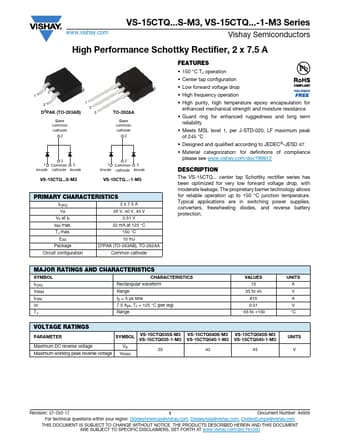

Preview of VS-15CTQ035S-M3 PDF
VS-15CTQ035S-M3 Datasheet Preview Page 2 VS-15CTQ035S-M3 Datasheet Preview Page 3

Datasheet Details

Part number:

VS-15CTQ035S-M3

Manufacturer:

Vishay ↗

File Size:

212.17 KB

Description:

High performance schottky rectifier.
