VS-20MQ100-M3, Schottky Rectifier

www.vishay.com VS-20MQ100-M3 Vishay Semiconductors Schottky Rectifier, 2 A Cathode Anode DO-214AC (SMA) PRODUCT SUMMARY Package IF(AV) VR VF at I.
The VS-20MQ100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boar.

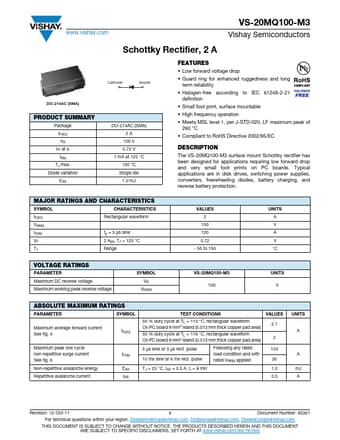

datasheet Preview Page 1 from Datasheet4u.com

VS-20MQ100-M3-Vishay.pdf

VS-20MQ100-M3 Datasheet Preview — Preview of VS-20MQ100-M3 PDF

Datasheet Details

Part number:

VS-20MQ100-M3

Manufacturer:

Vishay ↗

File Size:

117.15 KB

Description:

Schottky Rectifier

Features

* Low forward voltage drop
* Guard ring for enhanced ruggedness and long term reliability
* Halogen-free according to IEC 61249-2-21 definition
* Small foot print, surface mountable
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maxi

Applications

* requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) VRRM IFSM Rec
