VS-20MQ100HM3

Schottky Rectifier

VS-20MQ100HM3 Features

* Low forward voltage drop

* Guard ring for enhanced ruggedness and long term reliability

* Small foot print, surface mountable

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Meets JESD 201 class 2 whisker te

VS-20MQ100HM3 General Description

The VS-20MQ100HM3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protecti.

VS-20MQ100HM3 Datasheet (123.37 KB)

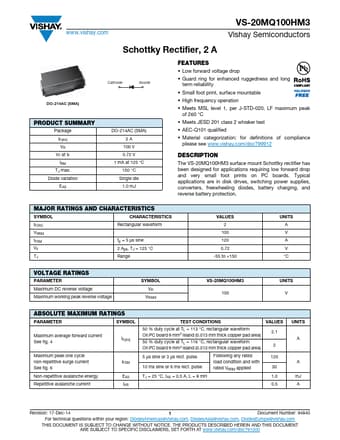

Preview of VS-20MQ100HM3 PDF

Datasheet Details

Part number:

VS-20MQ100HM3

Manufacturer:

Vishay ↗

File Size:

123.37 KB

Description:

Schottky rectifier.
www.vishay.com VS-20MQ100HM3 Vishay Semiconductors Schottky Rectifier, 2 A Cathode Anode DO-214AC (SMA) PRODUCT SUMMARY Package IF(AV) VR VF at I.
