VS-20MQ100NPbF

High Performance Schottky Rectifier

VS-20MQ100NPbF Features

* Small foot print, surface mountable

* Low forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

* Designed and qualified for indust

VS-20MQ100NPbF General Description

The VS-20MQ100NPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, freewheeling diodes, battery charging, and reverse battery protect.

VS-20MQ100NPbF Datasheet (123.20 KB)

Preview of VS-20MQ100NPbF PDF

Datasheet Details

Part number:

VS-20MQ100NPbF

Manufacturer:

Vishay ↗

File Size:

123.20 KB

Description:

High performance schottky rectifier.

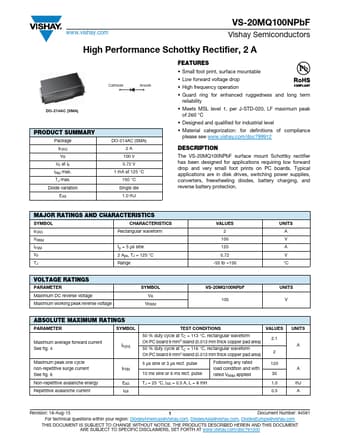

www.vishay.com VS-20MQ100NPbF Vishay Semiconductors High Performance Schottky Rectifier, 2 A Cathode Anode DO-214AC (SMA) PRODUCT SUMMARY Packag.
