VS-30CPQ040PbF, VS-30CPQ035PbF Schottky Rectifier

VS-30CPQ040PbF Description

VS-30CPQ0PbF Series, VS-30CPQ0-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC 13 An.
The VS-30CPQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-30CPQ040PbF Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

VS-30CPQ040PbF Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ VALUES 30 35 to 45 1020 0.50 - 55 to 150 UNIT

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30CPQ040PbF, VS-30CPQ035PbF. Please refer to the document for exact specifications by model.

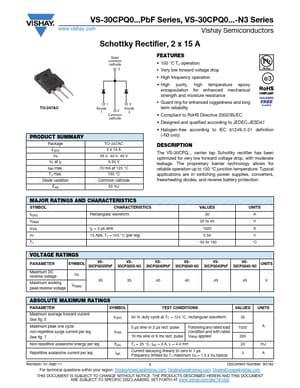

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-30CPQ040PbF, VS-30CPQ035PbF
Manufacturer
Vishay ↗
File Size
155.62 KB
Datasheet
VS-30CPQ035PbF-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-30CPQ040PbF, VS-30CPQ035PbF.
Please refer to the document for exact specifications by model.
