VS-30CPQ050-N3, VS-30CPQ050PbF Schottky Rectifier

VS-30CPQ050-N3 Description

www.vishay.com VS-30CPQ0.0PbF, VS-30CPQ0.0-N3 Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC 13 Anode 1 2 A.
The VS-30CPQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-30CPQ050-N3 Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

VS-30CPQ050-N3 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ VALUES 30 50/60 1020 0.56 - 55 to 150 UNITS A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30CPQ050-N3, VS-30CPQ050PbF. Please refer to the document for exact specifications by model.

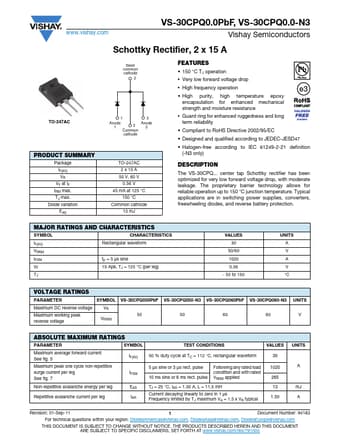

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-30CPQ050-N3, VS-30CPQ050PbF
Manufacturer
Vishay ↗
File Size
151.48 KB
Datasheet
VS-30CPQ050PbF-Vishay.pdf
Description
Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-30CPQ050-N3, VS-30CPQ050PbF.
Please refer to the document for exact specifications by model.
