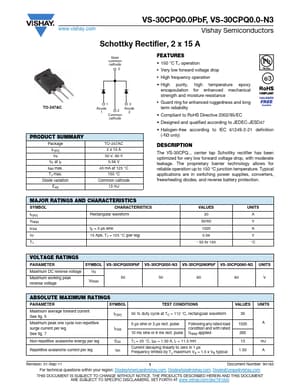

VS-30CPQ050PbF Schottky Rectifier

www.vishay.com VS-30CPQ0.0PbF, VS-30CPQ0.0-N3 Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base common cathode 2 TO-247AC 13 Anode 1 2 A.
The VS-30CPQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-30CPQ050PbF-Vishay.pdf

VS-30CPQ050PbF Datasheet Preview — Preview of VS-30CPQ050PbF PDF

Datasheet Details

Part number:

VS-30CPQ050PbF

Manufacturer:

Vishay ↗

File Size:

151.48 KB

Description:

Schottky Rectifier

Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ VALUES 30 50/60 1020 0.56 - 55 to 150 UNITS A
