The VS-30CPQ045PbF by Vishay is a Schottky Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	VS-30CPQ045PbF, VS-30CPQ035PbF
Manufacturer	Vishay
File Size	155.62 KB
Description	Schottky Rectifier
Datasheet	VS-30CPQ035PbF-Vishay.pdf
Note	This datasheet PDF includes multiple part numbers: VS-30CPQ045PbF, VS-30CPQ035PbF. Please refer to the document for exact specifications by model.

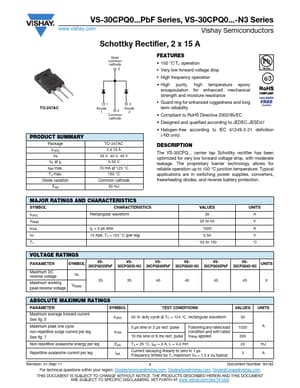

Additional preview pages of the VS-30CPQ045PbF datasheet.

The VS-30CPQ center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

150 °C TJ operation.
Very low forward voltage drop.
High frequency operation.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
Guard ring for enhanced ruggedness and long term reliability.
Compliant to RoHS Directive 2002/95/EC.
Designed and qualified according to JEDEC-JESD47.
Halogen-free according to IEC 61249-2-21 definition (-N3 only).
