VS-30CTQ060-N3, VS-30CTQ050PbF Schottky Rectifier

VS-30CTQ060-N3 Description

VS-30CTQ0PbF Series, VS-30CTQ0-N3 Series www.vishay.com Vishay Semiconductors Schottky Rectifier, 2 x 15 A Base 2 common cathode TO-220AB Anode .
This center tap Schottky rectifier has been optimized for very low forward voltage drop, with moderate leakage.

VS-30CTQ060-N3 Features

* 150 °C TJ operation
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability

VS-30CTQ060-N3 Applications

* are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. MAJOR RATINGS AND CHARACTERISTICS SYMBOL CHARACTERISTICS IF(AV) Rectangular waveform VRRM IFSM tp = 5 μs sine VF 15 Apk, TJ = 125 °C (per leg) TJ Range VALUES 30 50/60 1000 0.56 - 55 to 150 UN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30CTQ060-N3, VS-30CTQ050PbF. Please refer to the document for exact specifications by model.

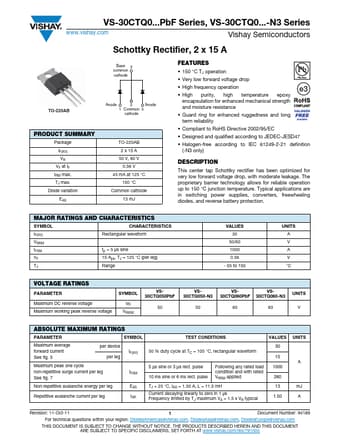

datasheet Preview Page 2 datasheet Preview Page 3
