VS-30CTQ060S-M3, VS-30CTQ050S-M3 High Performance Schottky Rectifier

VS-30CTQ060S-M3 Description

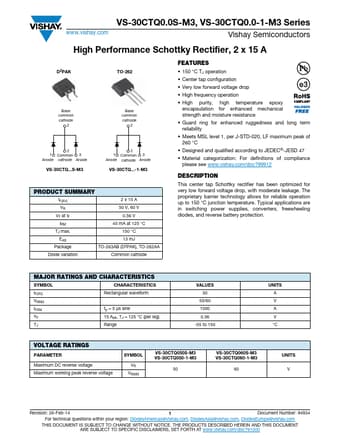

VS-30CTQ0.0S-M3, VS-30CTQ0.0-1-M3 Series www.vishay.com Vishay Semiconductors High Performance Schottky Rectifier, 2 x 15 A D2PAK TO-262 Base co.

VS-30CTQ060S-M3 Features

* 150 °C TJ operation
* Center tap configuration
* Very low forward voltage drop
* High frequency operation
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggednes

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: VS-30CTQ060S-M3, VS-30CTQ050S-M3. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
VS-30CTQ060S-M3, VS-30CTQ050S-M3
Manufacturer
Vishay ↗
File Size
185.61 KB
Datasheet
VS-30CTQ050S-M3-Vishay.pdf
Description
High Performance Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: VS-30CTQ060S-M3, VS-30CTQ050S-M3.
Please refer to the document for exact specifications by model.
