VS-95SQ015-M3

Schottky Rectifier

VS-95SQ015-M3 Features

* 125 °C TJ operation (VR < 5 V)

* Optimized for OR-ing applications

* Ultralow forward voltage drop

* High frequency operation

* Guard ring for enhanced ruggedness and long term reliability

* High purity, high temperature epoxy encapsulation for enhan

VS-95SQ015-M3 General Description

The VS-95SQ015 axial leaded Schottky rectifier has been optimized for ultralow forward voltage drop specifically for the OR-ing of parallel power supplies. The proprietary barrier technology allows for reliable operation up to 100 °C junc.

VS-95SQ015-M3 Datasheet (135.31 KB)

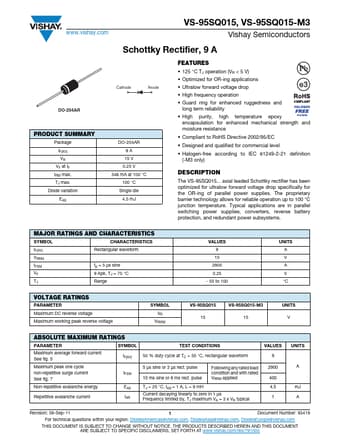

Preview of VS-95SQ015-M3 PDF

Datasheet Details

Part number:

VS-95SQ015-M3

Manufacturer:

Vishay ↗

File Size:

135.31 KB

Description:

Schottky rectifier.
www.vishay.com VS-95SQ015, VS-95SQ015-M3 Vishay Semiconductors Schottky Rectifier, 9 A DO-204AR Cathode Anode PRODUCT SUMMARY Package IF(AV) VR .
